YH / YSH Series

Three-Phase Scroll Compressors for A/C

Scroll Model Application Refrigerant HP BTU Voltage Phases
YH89T7-100 A/C R407C 3 37000 220 3
YH150T7-210 A/C R407C 5 59000 220 3
YH150T3-100 A/C R407C 5 59000 220 3
YH150T1-100 A/C R407C 5 59000 460 3
YH150T1-210 A/C R407C 5 59000 460 3
YH150T3-210 A/C R407C 5 58900 220 1
YH175T7-210 A/C R407C 6 68000 220 3
YH175T1-210 A/C R407C 6 68000 460 3
YH230T7-210 A/C R407C 8 92000 220 3
YH230T1-210 A/C R407C 8 92000 460 3
YH266T7-210 A/C R407C 9 106000 220 3
YH266T7-100 A/C R407C 9 106000 220 3
YH266T1-210 A/C R407C 9 106000 460 3
YH307T7-210 A/C R407C 10 122000 220 3
YH307T1-210 A/C R407C 10 122000 460 3
YH355T7-210 A/C R407C 12 140000 220 3
YH355T1-210 A/C R407C 12 140000 460 3
YSH450T1G-100 A/C R407C 15 192000 460 3
YH610T1G-100 A/C R407C 20 238000 460 3
YH720T1G-100 A/C R407C 25 280000 460 3

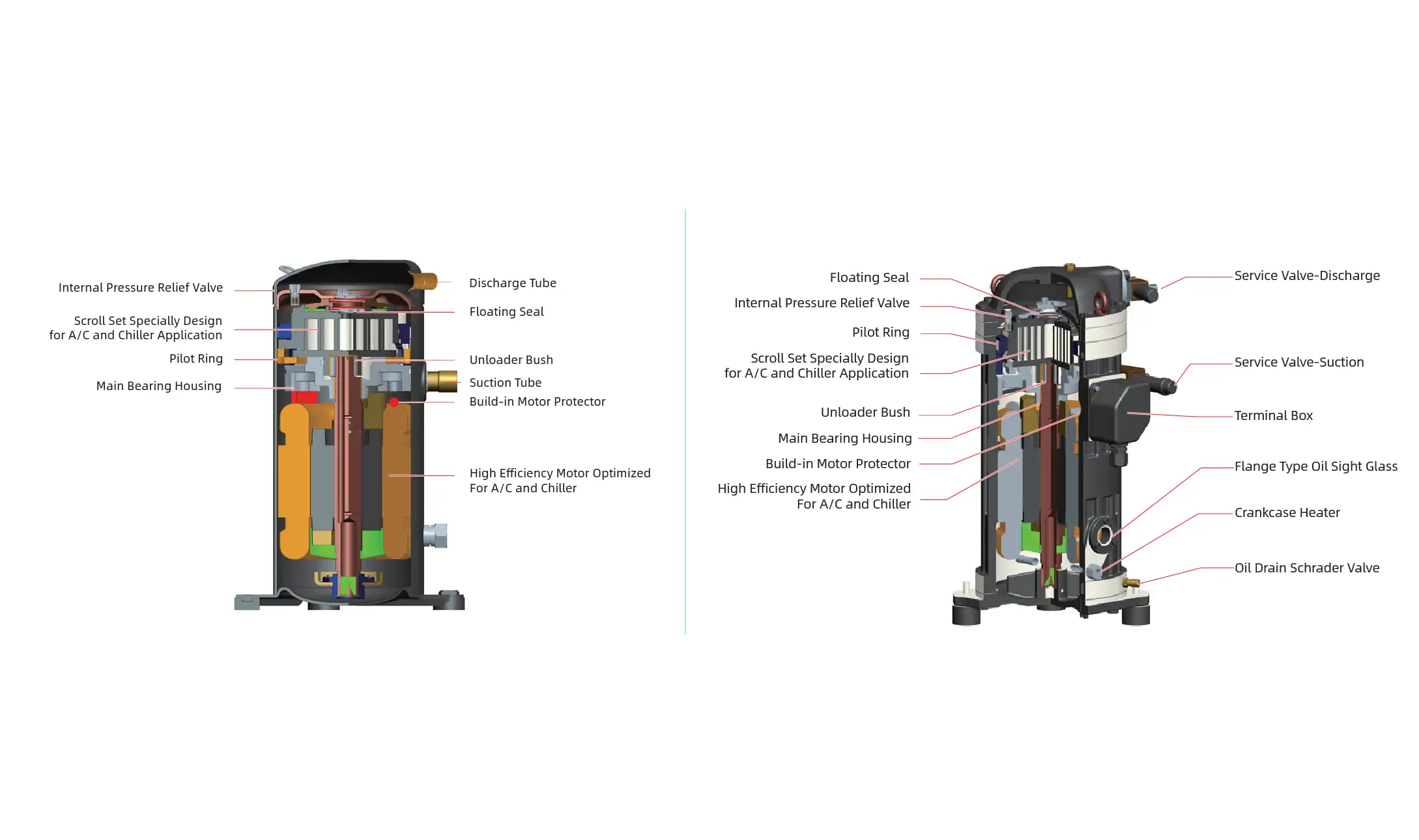

INVOTECH SCROLL ENGINEERED FEATURES AND DESIGN

  • Built in acoustic insulation to reduce the sound of operating.
  • Floating design optimized for better COP
  • Multiple internal protections
  • High pressure protection
  • Overload protection

Packaging

All INVOTECH scroll compressors are:

  • Individually packaged
  • Average dispatch time of 24-48 hours, once your order is placed.
  • All Invotech single-phase Scroll compressors are shipped with their starter kit
  • Each INVOTECH scroll compressor has a QR code to facilitate registration and warranty activation.

Terms and Conditions

  • The customer must register the compressor through our website: Register Link or our mobile application or available at App Store.
  • The registration must be completed within 60-days of purchase.
  • Once the compressor is registered, the customer will receive his start-up sheet form and they must fill in all the information requested to activate the warranty and issue the warranty certificate.
  • ONCE THE START-UP SHEET IS COMPLETED, IT MUST BE SUBMITTED TO COMPLETE THE WARRANTY ACTIVATION PROCESS.
  • Omitting the warranty registration and activation process VOIDS the 12-month INVOTECH compressor warranty.

IMPORTANT:

  • BEFORE INSTALLING YOUR INVOTECH SCROLL COMPRESSOR BE SURE TO READ THE INSTALLATION MANUAL.
  • FAILURE TO FOLLOW THE INSTRUCTIONS IN THE MANUAL COULD DAMAGE YOUR COMPRESSOR AND VOID YOUR WARRANTY.

INVOWIN

Invotech offers you INVOWIN, its compressor selection program for free, which will help you select the compressor that best suits your needs.
