YM / YSM Series

Single-Phase Scroll Compressors for Medium Temperature

Scroll Model Refrigerant HP BTU Voltage Phases
YM34E3G-100 R404A 2 14500 220 1
YM34E3S-100 R404A 2 14500 220 1
YM43E3G-100 R404A 2.5 17400 220 1
YM43E3S-100 R404A 2.5 17400 220 1
YM49E3G-100 R404A 3 19800 220 1
YM49E3S-100 R404A 3 19800 220 1
YM60E3G-100 R404A 3.5 24983 220 1
YM60E3S-100 R404A 3.5 24983 220 1
YM86E3G-100 R404A 5 36000 220 1
YM86E3S-100 R404A 5 36000 220 1
YM86E3G-10N R404A 5 36000 220 1

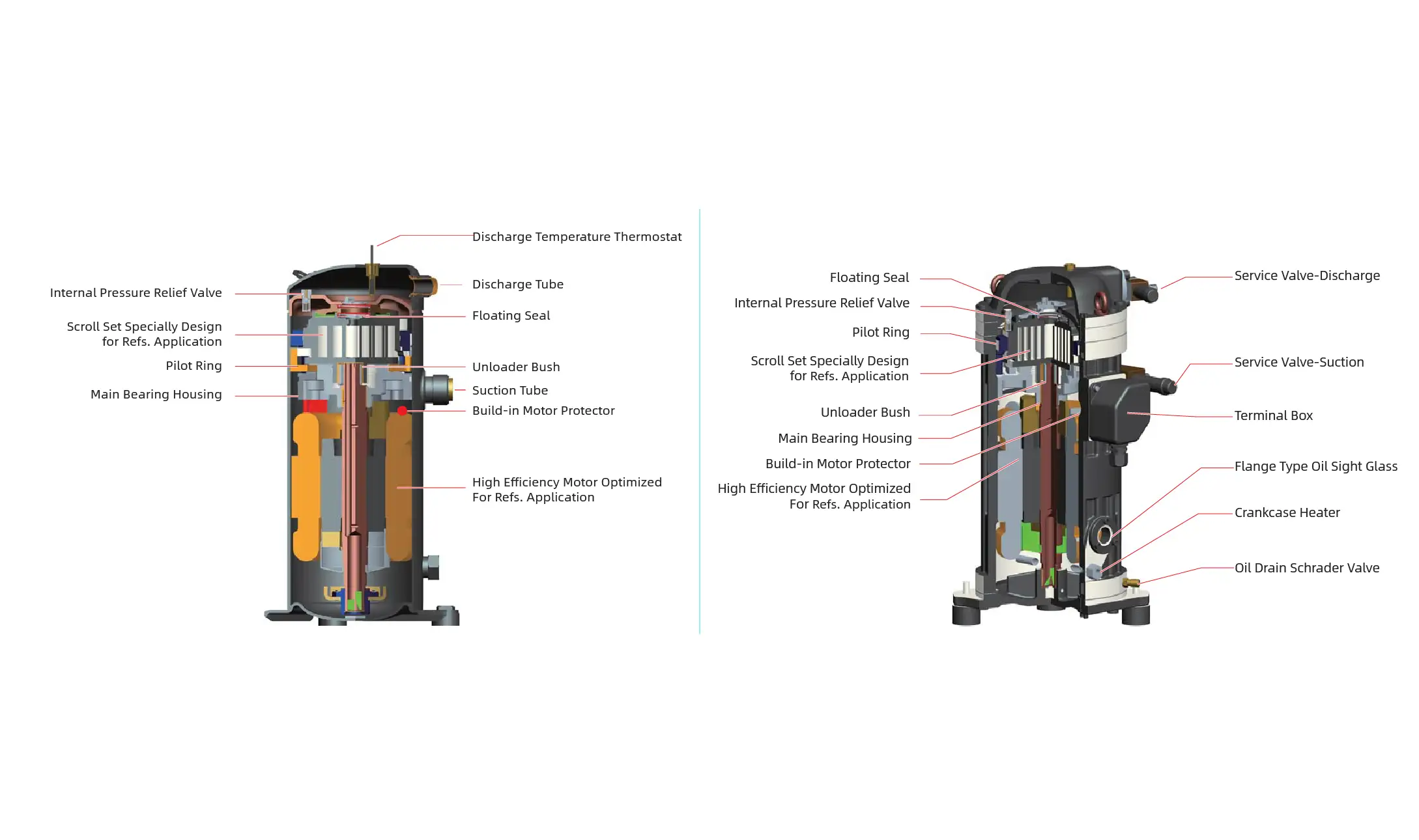

INVOTECH SCROLL ENGINEERED FEATURES AND DESIGN

  • Built in acoustic insulation to reduce the sound of operating.
  • Floating design optimized for better COP
  • Multiple internal protections
  • High pressure protection
  • Overload protection

Packaging

All INVOTECH scroll compressors are:

  • Individually packaged
  • Average dispatch time of 24-48 hours, once your order is placed.
  • All Invotech single-phase Scroll compressors are shipped with their starter kit
  • Each INVOTECH scroll compressor has a QR code to facilitate registration and warranty activation.

Terms and Conditions

  • The customer must register the compressor through our website: Register Link or our mobile application or available at App Store.
  • The registration must be completed within 60-days of purchase.
  • Once the compressor is registered, the customer will receive his start-up sheet form and they must fill in all the information requested to activate the warranty and issue the warranty certificate.
  • ONCE THE START-UP SHEET IS COMPLETED, IT MUST BE SUBMITTED TO COMPLETE THE WARRANTY ACTIVATION PROCESS.
  • Omitting the warranty registration and activation process VOIDS the 12-month INVOTECH compressor warranty.

IMPORTANT:

  • BEFORE INSTALLING YOUR INVOTECH SCROLL COMPRESSOR BE SURE TO READ THE INSTALLATION MANUAL.
  • FAILURE TO FOLLOW THE INSTRUCTIONS IN THE MANUAL COULD DAMAGE YOUR COMPRESSOR AND VOID YOUR WARRANTY.

INVOWIN

Invotech offers you INVOWIN, its compressor selection program for free, which will help you select the compressor that best suits your needs.
